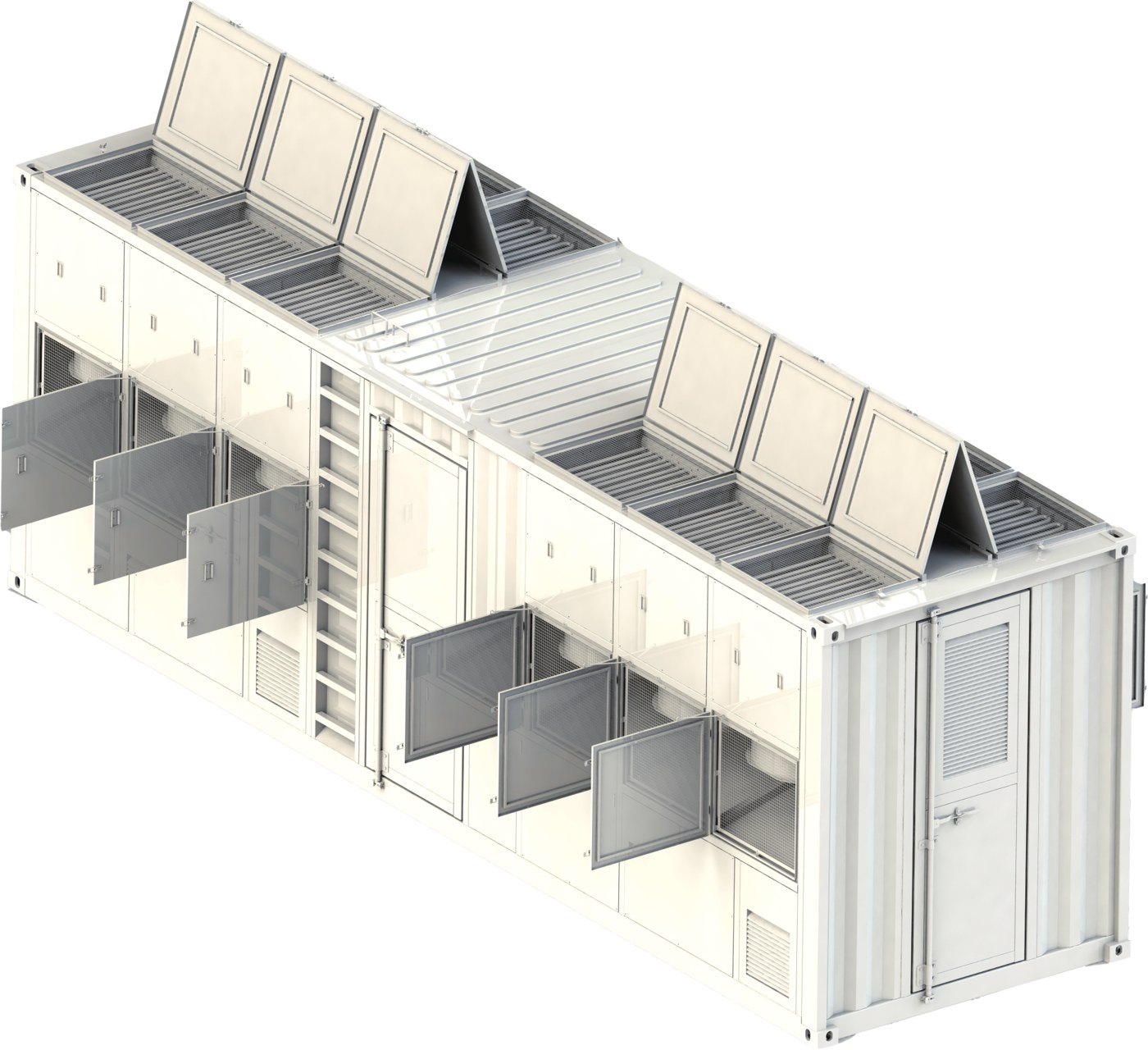

Marine High-power RL Load Bank
Containerised resistive-inductive load bank that simulates the marine navigation load for genset stability and shore-power compatibility testing.
نظرة عامة
The marine high-power RL load bank simulates the vessel navigation load (propulsion, navigation equipment and air conditioning) to verify the operational stability of marine diesel generator sets. It also performs shore-power compatibility tests, checking voltage and frequency matching between shore-power interfaces and shipboard equipment to prevent damage from voltage mismatch.
التطبيقات
- Marine diesel genset load testing
- Shore-power compatibility verification
- Class society type tests and sea-trial verification
المواصفات
| Voltage range | AC 400/440/690V |
|---|---|
| Rated frequency | 50/60Hz |
| Rated active power | 0–4500kW |
| Rated inductive reactive | 0–3375kVar |
| Power factor | 0.8–1 |
هل تحتاج إلى تكوين وعرض سعر لجهازك؟ يرد مهندسونا خلال يوم عمل واحد.
الاستفسار عن هذا المنتجمنتجات ذات صلة
بنوك أحمال RLC مطوّرة داخليًا من AC 400V–13.8kV وحتى 10,000kW لاختبار المولدات وUPS والعواكس الشمسية وPCS.

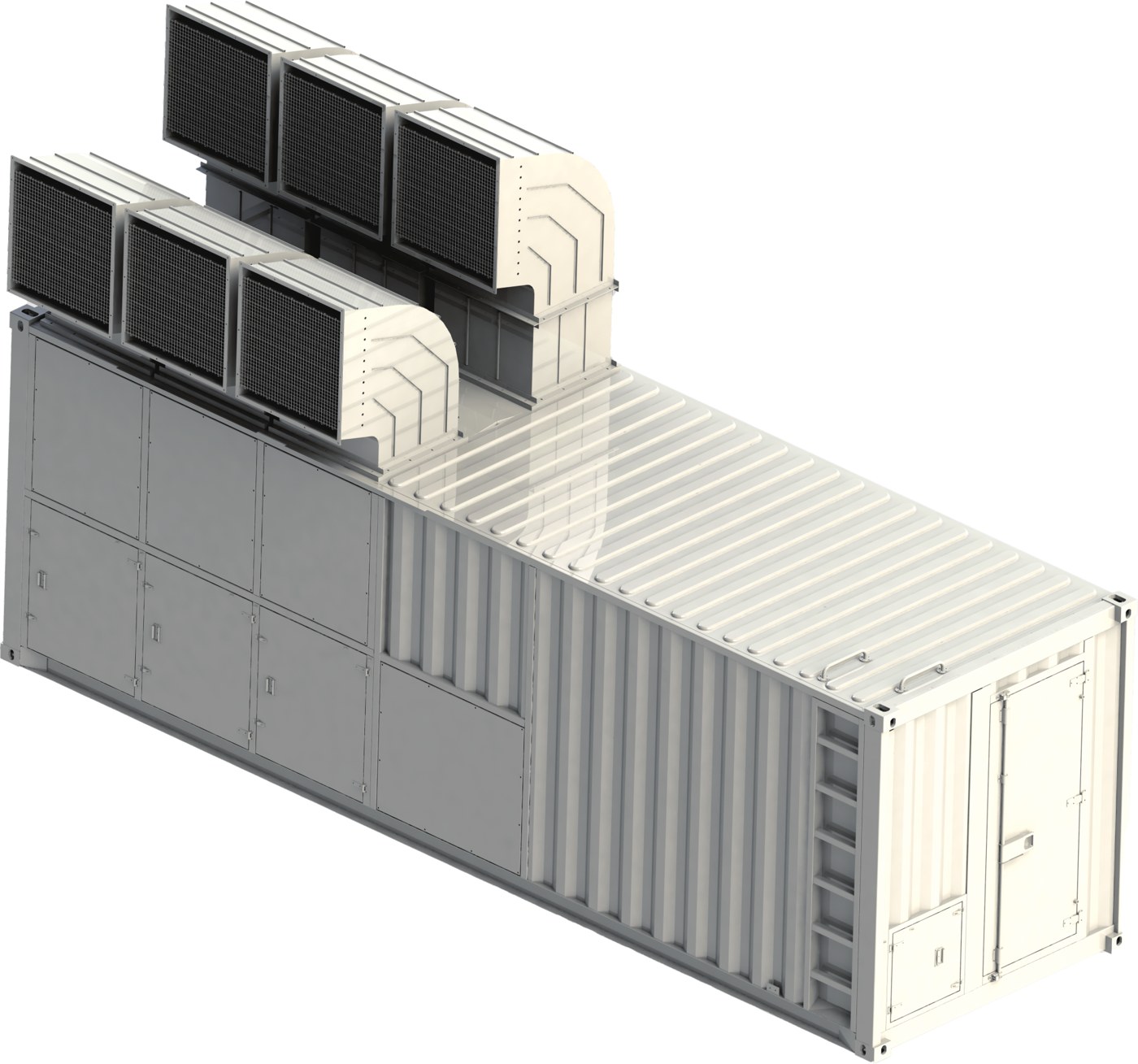

High-voltage resistive and capacitive load bank for testing, verification and maintenance of standby diesel gensets in data centres, both on site and at factory acceptance.
